Compact Soft Shell Rooftop Tent 3–4 Person

Description

Overview

The Compact Soft Shell rooftop tent is a three-season side-fold tent built for small families or pairs who like extra room to spread out. The short-style platform gives you a generous sleeping footprint without taking over the whole roof, and the tent packs down into a low, compact bundle when it’s closed. A 60 mm high-density mattress, tall sidewalls, and a full-length telescopic ladder make it a practical setup for weekend trips and longer road journeys.

Made for three-season adventures

This tent is designed for spring, summer, and autumn use. The main canopy uses 420D rip-stop polyester Oxford that is waterproof and UV-resistant, so it handles sustained rain and strong sun without breaking down quickly. The separate rainfly and optional annex use the same diamond rip-stop fabric, giving you a consistent weather barrier around the sleeping area and ladder entrance.

Quick setup on most roof racks

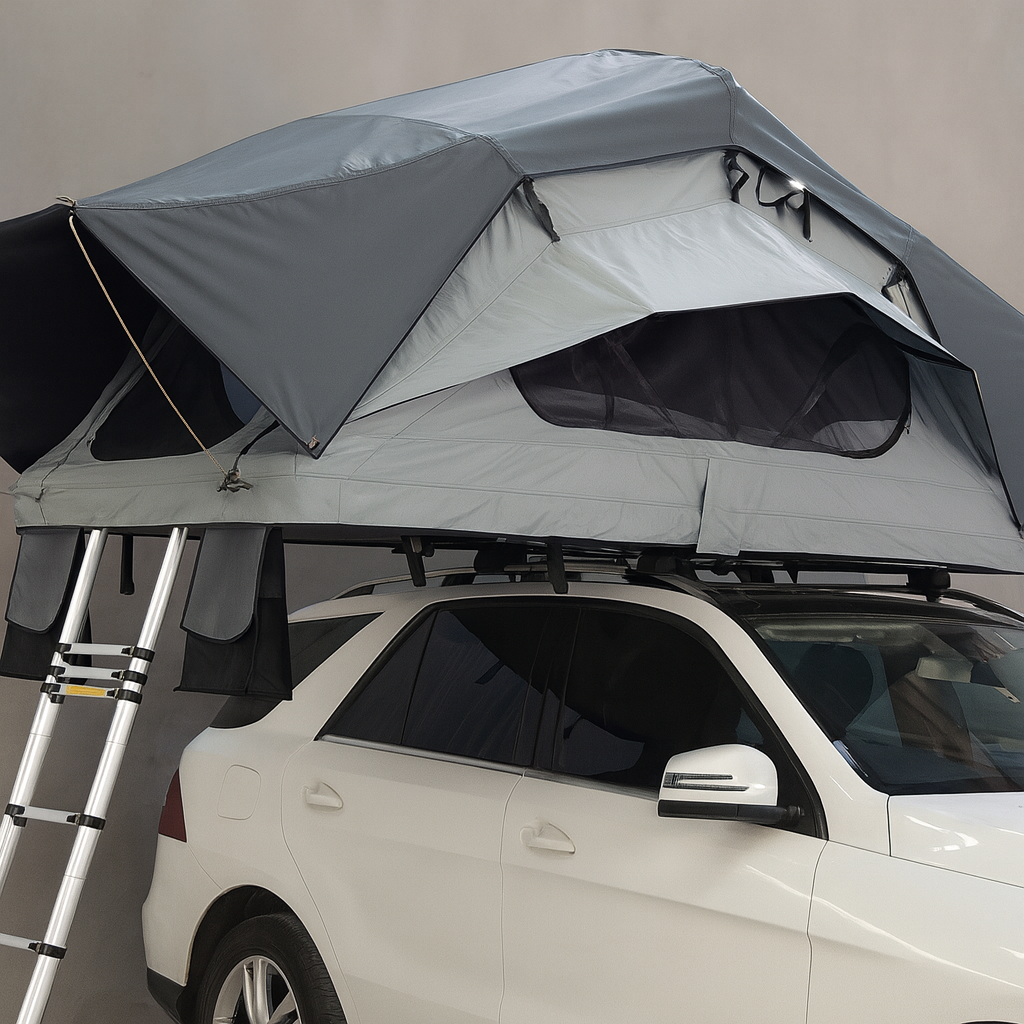

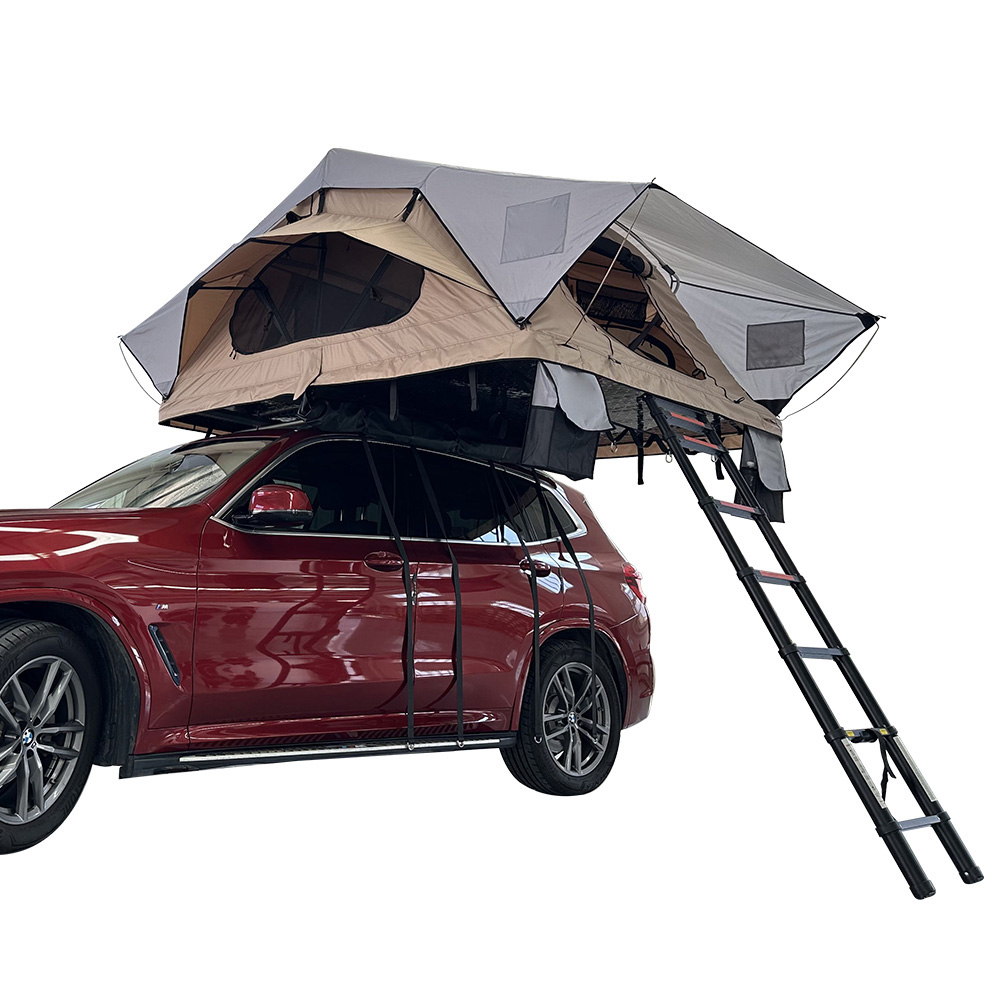

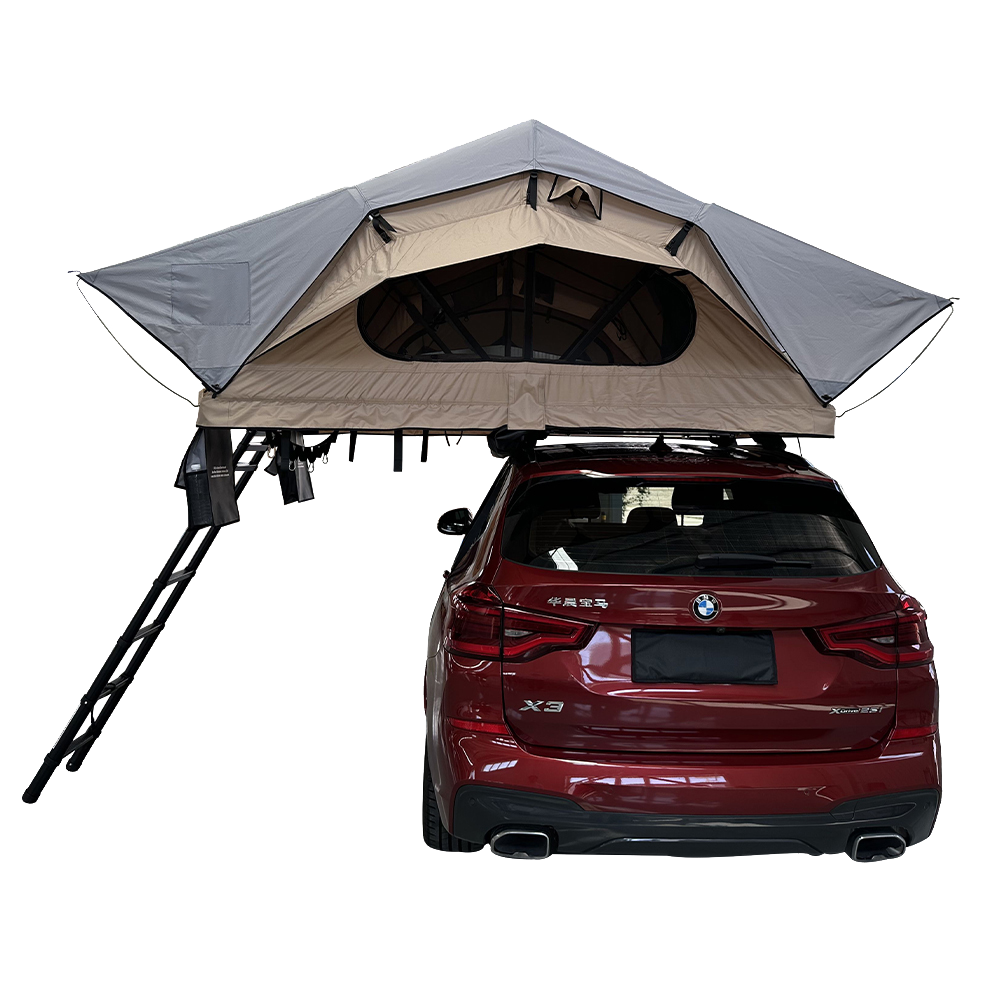

The Compact Soft Shell mounts to standard crossbars or a platform rack and opens in one motion. Once the travel cover is removed, the tent folds out over the side of the vehicle and the 230 cm (about 7 ft 6 in) telescopic laddersupports the outer edge. You get a full-size sleeping area while most of the hardware stays permanently mounted on the roof, so setup and pack-down stay quick and repeatable.

Interior space and comfort

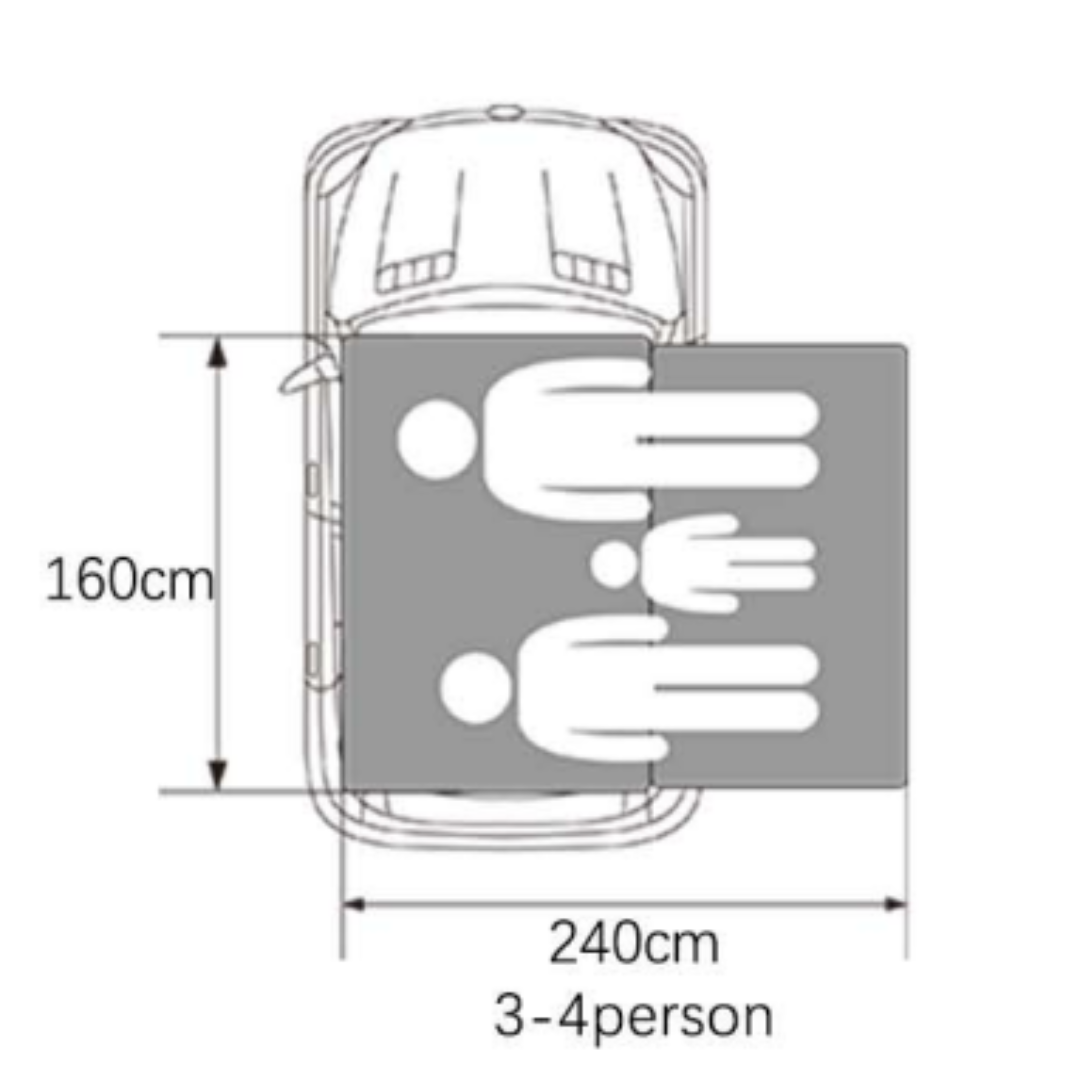

Inside, the tent offers a sleeping footprint of 160 x 240 cm (about 63 in x 94 in, or 5 ft 3 in x 7 ft 10 in), sized for 3 adults or 2 adults plus 2 kids. A 60 mm (2.4 in) high-density foam mattress with a removable cover is included, so you don’t need extra pads unless you want a different firmness. The soft shell design gives upright headroom along the length of the tent, and the side windows plus door can be opened for airflow while the mesh layer keeps insects out.

Built to last

The base uses a welded aluminum tube frame with insulated, anti-scratch aluminum sheet on top, which spreads the load across your crossbars and insulates you from cold air passing under the tent. Anodized aluminum poles keep the canopy supported, while the heavy-duty PVC travel cover (around 680 gsm / 1200D) protects the tent fabric from road grime, UV, and weather when closed. All major connection points use stainless hardware and SBS zippers for long-term reliability.

Key features

• Three-season soft shell design – ideal for spring, summer, and autumn camping.

• Sleeping area 160 x 240 cm (63″ x 94″) – comfortably fits 3 adults or 2 adults with kids.

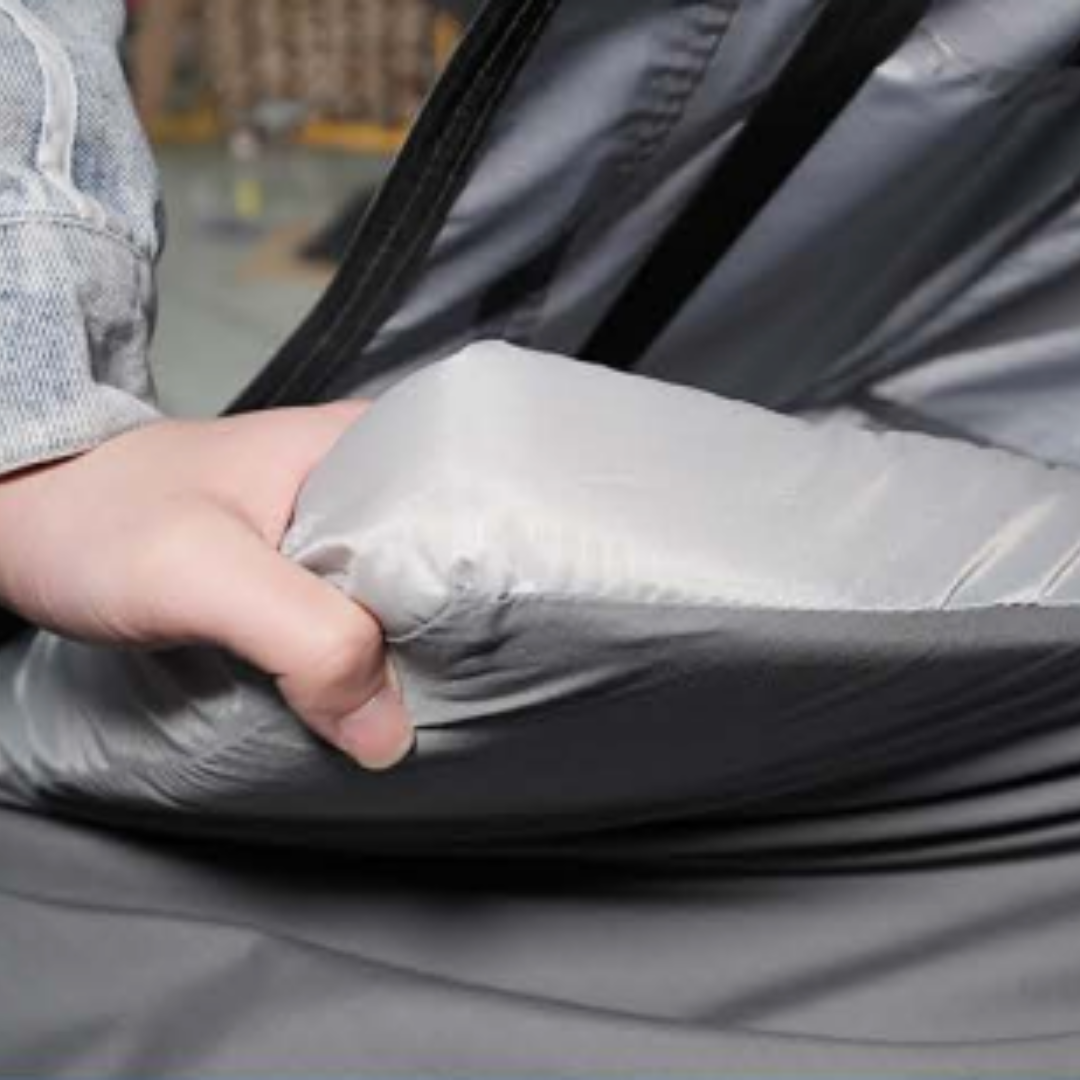

• 60 mm high-density foam mattress – built-in sleeping pad with removable, washable cover.

• 420D diamond rip-stop polyester rainfly – waterproof to 2500 mm with UV 50+ protection and mold resistance.

• 420D rip-stop polyester tent body – waterproof to 3000 mm for extra protection in sustained rain.

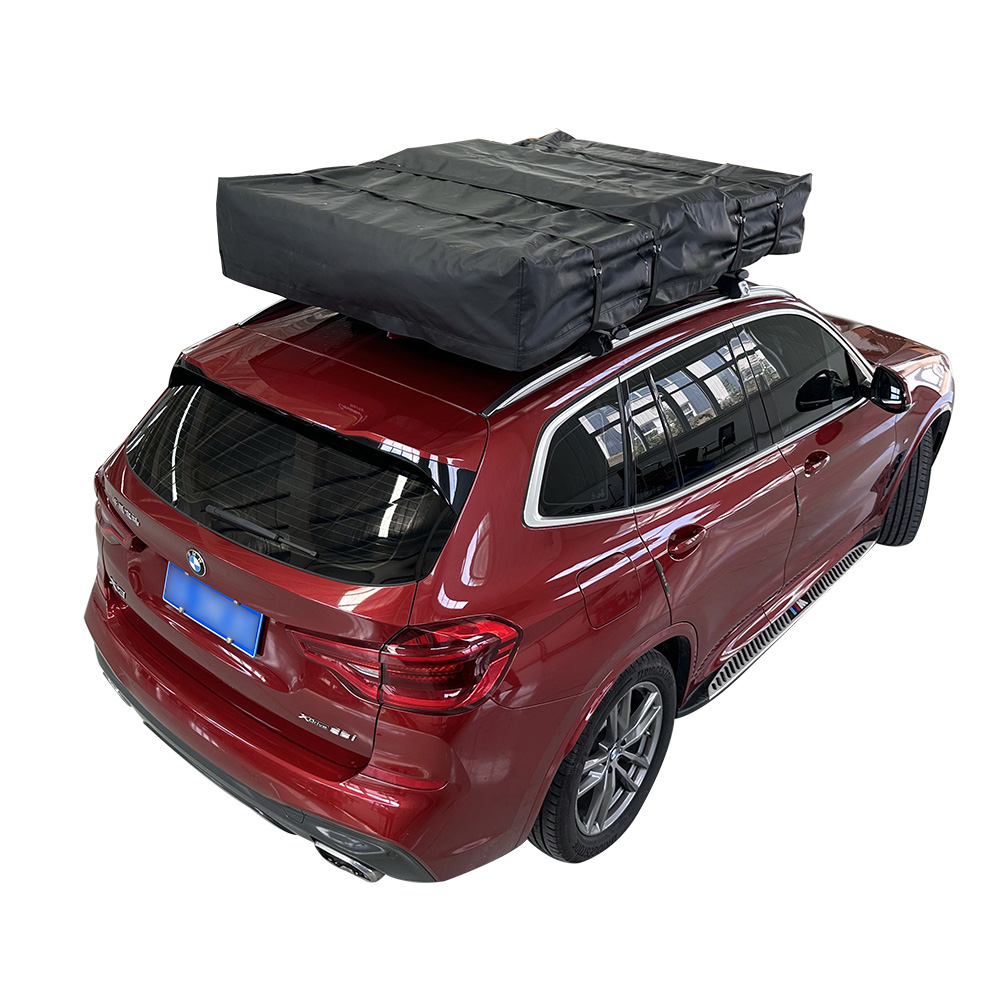

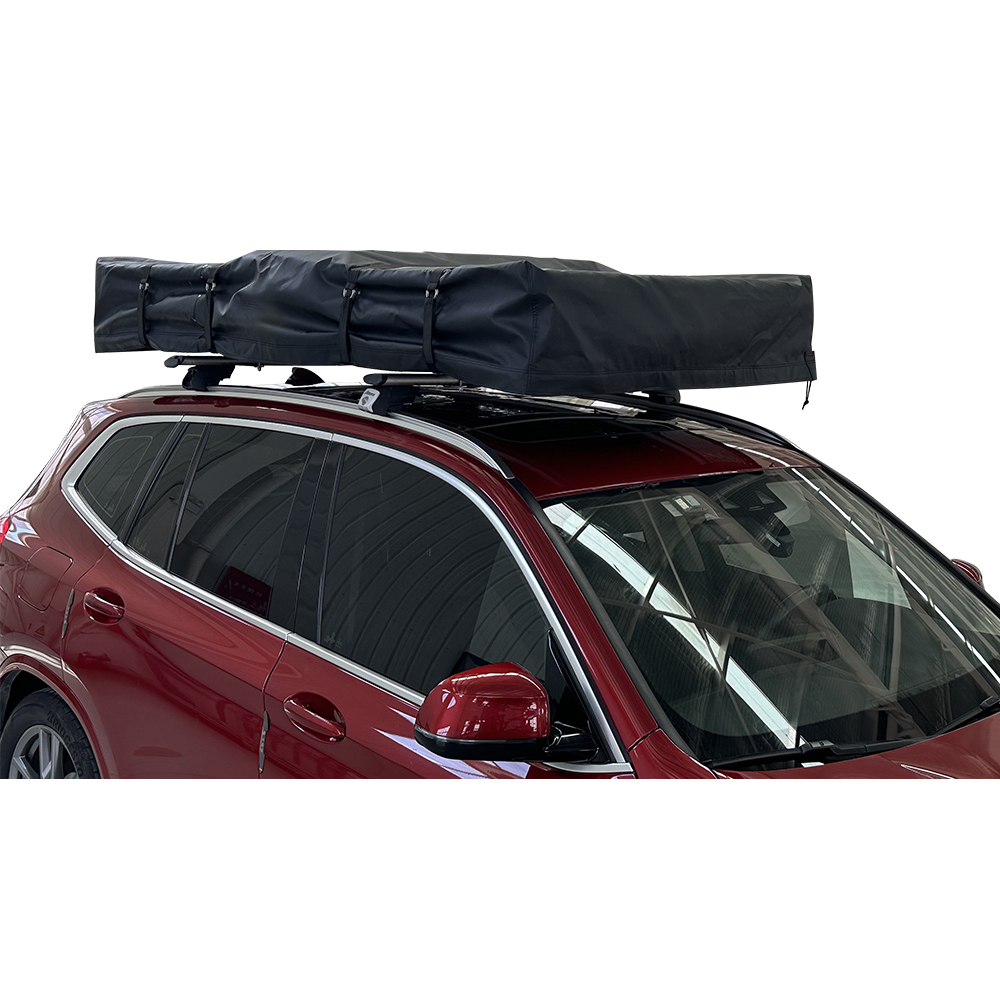

• Heavy-duty PVC travel cover – approx. 680 gsm / 1200D PVC, waterproof around 10,000 mm, shields the tent while driving.

• Welded aluminum tube base with insulated aluminum sheet – strong, lightweight platform that insulates against under-floor cold.

• Anodized aluminum support poles and curved internal frame – resists corrosion and keeps the canopy stable in wind.

• 230 cm (about 7 ft 6 in) telescopic aluminum ladder – adjustable height for a wide range of vehicles.

• Silent SBS zippers with nylon pullers – smoother opening and closing with less noise at night.

• Optional annex room – attaches around the ladder to create a sheltered changing or gear area (sold separately).

Technical specifications – Compact Soft Shell

Category

• Three-season soft shell rooftop tent, short-style side fold

Sleeping capacity

• 3–4 person

Sleeping footprint

• 160 x 240 cm

• Approx. 63 in x 94 in (about 5 ft 3 in x 7 ft 10 in)

Closed / packed size on roof

• 165 x 125 x 28 cm

• Approx. 65 in x 49 in x 11 in

Weights

• Gross weight: 70 kg (about 154 lb)

• Net weight: 68 kg (about 150 lb)

Fabric & materials

• Rainfly / Annex: 420D diamond rip-stop polyester Oxford, waterproof 2500 mm, UV 50+, mold-resistant

• Tent body: 420D rip-stop polyester Oxford, waterproof 3000 mm, UV 50+, mold-resistant

• Travel cover: heavy-duty 680 gsm / 1200D PVC, waterproof approx. 10,000 mm, UV 50+

• Base: welded aluminum tube with insulated foam and anti-scratch aluminum sheet

• Frame / poles: anodized aluminum curved poles

• Ladder: 230 cm telescopic anodized aluminum ladder

• Mattress: 60 mm (2.4 in) high-density foam, removable washable cover

• Hardware: aluminum extrusions and stainless steel fasteners

Season rating

• Three-season (spring, summer, autumn)

Included in the box

• Compact Soft Shell rooftop tent

• Heavy-duty PVC travel cover

• 60 mm mattress with cover

• Telescopic ladder

• Mounting hardware and installation manual

Available options

• Annex room

• Skylight / roof window

• Shoe bags, mesh gear bag, LED lighting kit

• Anti-condensation mat and upgraded ladder (availability depends on reseller)
