Extended Soft Shell Rooftop Tent 4–5 Person

Description

The Extended Soft Shell rooftop tent is a long-style side-fold tent designed for families and groups who need maximum sleeping space on the roof. It opens to a large 190 x 240 cm sleeping area while packing into a low, rectangular bundle when closed. A 60 mm high-density mattress, aluminum frame, and full-length telescopic ladder turn your roof rack into a comfortable sleeping platform for 4–5 people, depending on how tightly you pack in.

Three-season long-style design

By your internal classification, this is a three-season soft shell tent, intended for spring, summer, and autumn trips. The rainfly is made from 420D diamond rip-stop polyester Oxford, rated waterproof to 2500 mm and treated for UV 50+ and mold resistance. The main tent body uses 420D rip-stop polyester Oxford as well, with a higher 3000 mm waterproof rating for added protection in sustained rain.

The long-style platform keeps the full 240 cm length along the vehicle, which gives more room for taller sleepers or families, while the folding mechanism keeps setup simple—unclip the cover, fold the base out over the side, extend the ladder, and tension the poles.

Sleeping space and comfort

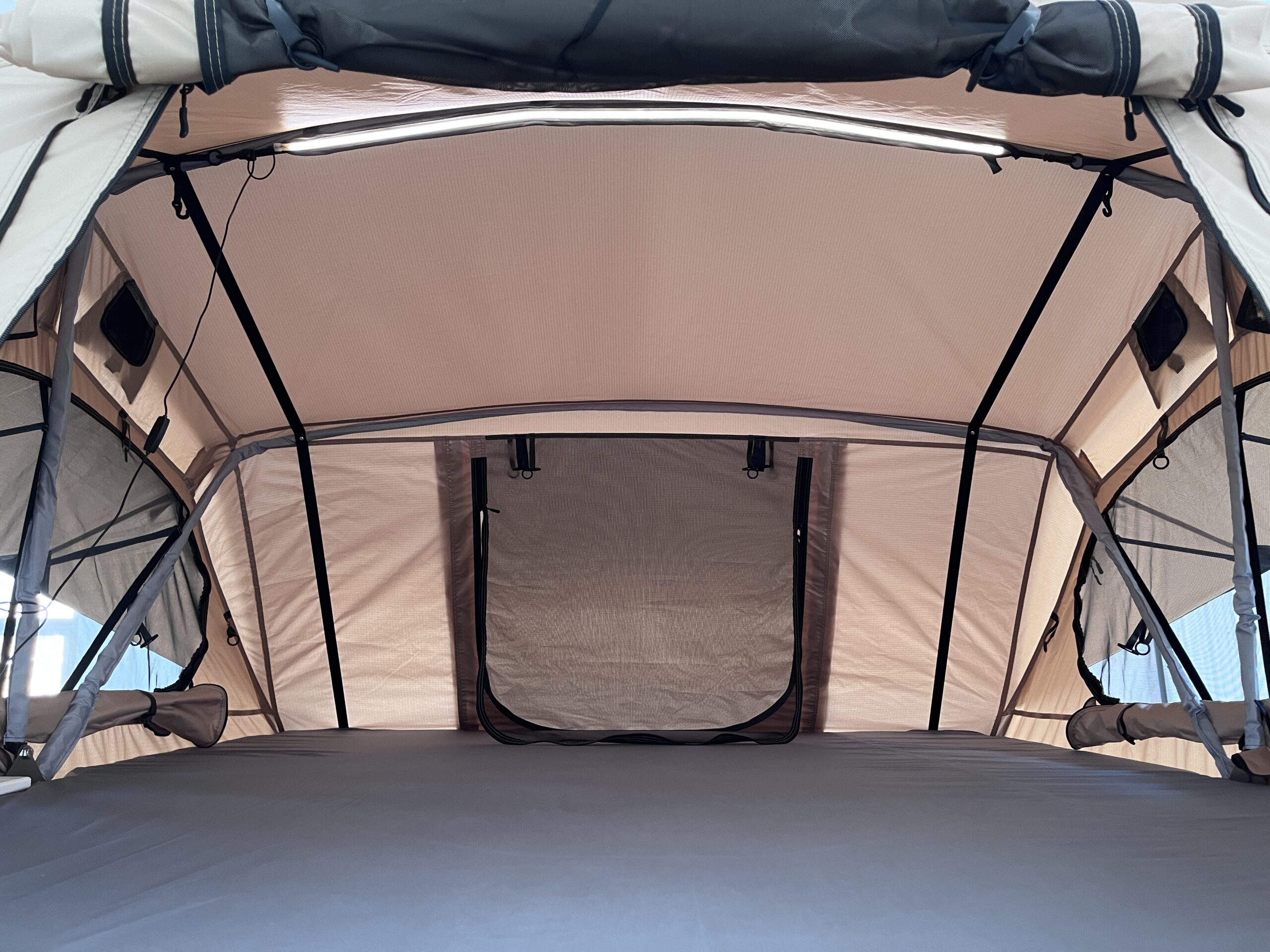

Inside, the Extended Soft Shell offers a sleeping footprint of 190 x 240 cm:

• 190 cm ≈ 74.8 in (about 75″, roughly 6 ft 3 in)

• 240 cm ≈ 94.5 in (about 7 ft 10 in)

This area is sized for 4–5 sleepers—typically 2 adults with children or 3 adults who want more width than a standard double.

A 60 mm (2.4 in) high-density foam mattress with a removable, washable cover is included and spans the full floor, so you’re not dealing with multiple cushions. Windows and the main door have mesh layers to keep airflow moving while blocking insects.

Construction and access

The tent is built on a welded aluminum tube base with insulation and an anti-scratch aluminum sheet on top. This spreads the load across your crossbars and adds a small barrier against cold air flowing under the tent at night. The internal frame uses aluminum anodized curved poles to support the canopy.

Access is via a 230 cm aluminum anodized telescopic ladder (about 90.5 in, roughly 7 ft 6 in), which adjusts to common vehicle heights and supports the overhanging section. When closed, a heavy-duty PVC travel cover (about 680 gsm, sometimes called 1200D) wraps around the tent, rated waterproof to around 10,000 mm with UV 50+ protection, shielding the fabric and mattress from weather and road grime.

All required mounting parts are included in the package.

Optional accessories listed by the supplier include a skylight panel, mesh gear bag, anti-condensation mat, upgraded ladder, metal joints, and fabric-wrapped frame elements.

Key features

• Long-style soft shell rooftop tent – extended 240 cm platform for more sleeping length and width.

• Sleeping area 190 x 240 cm (≈75″ x 94.5″) – suitable for 4–5 people (family or group setup).

• 60 mm high-density foam mattress – integrated mattress with removable, washable cover.

• 420D diamond rip-stop polyester rainfly (2500 mm) – UV 50+ and mold-resistant outer layer.

• 420D rip-stop polyester tent body (3000 mm) – higher waterproof rating for the main canopy.

• Heavy-duty 680 gsm PVC travel cover (≈10,000 mm) – protects the tent while closed and traveling.

• Welded aluminum tube base with insulated, anti-scratch aluminum sheet – strong, insulated platform that sits on your rack.

• Aluminum anodized curved poles – corrosion-resistant internal frame.

• 230 cm (≈90.5″) telescopic aluminum ladder – adjustable ladder for access and support.

• Three-season rating (internal classification) – aimed at spring, summer, and autumn conditions with suitable bedding.

• Accessory options – skylight, mesh bag, anti-condensation mat, upgraded ladder, metal joints, and fabric-wrapped frame components.

Technical specifications – Extended Soft Shell

Category

• Three-season soft shell rooftop tent, long-style side fold

Sleeping capacity

• 4–5 person

Sleeping footprint

• 190 x 240 cm

• Approx. 74.8 in x 94.5 in

• Roughly 6 ft 3 in x 7 ft 10 in

Closed / packing size

• 195 x 125 x 28 cm

• Approx. 76.8 in x 49.2 in x 11.0 in

• Roughly 6 ft 5 in x 4 ft 1 in x 11 in

Weights

• Gross weight: 83 kg (about 183 lb)

• Net weight: 80 kg (about 176 lb)

Fabrics & cover

• Rainfly: 420D diamond rip-stop polyester Oxford, waterproof 2500 mm, UV 50+, mold-resistant

• Tent body: 420D rip-stop polyester Oxford, waterproof 3000 mm, UV 50+, mold-resistant

• Travel cover: heavy-duty 680 gsm PVC, waterproof approx. 10,000 mm, UV 50+

Base & frame

• Base: welded aluminum tube with insulation and anti-scratch aluminum sheet

• Frame: aluminum anodized curved poles

Mattress

• Thickness: 60 mm (2.4 in) high-density foam

• Cover: removable, washable

Ladder

• Aluminum anodized telescopic ladder, 230 cm (≈90.5 in)

Included in package

• Extended Soft Shell rooftop tent

• Heavy-duty PVC travel cover

• 60 mm mattress with cover

• Telescopic ladder

• Mounting hardware and installation manual

Manufacturer accessory options

• Skylight

• Mesh gear bag

• Anti-condensation mat

• Upgraded ladder

• Metal joints

• Fabric-wrapped frame parts
